P C

Phosphor Ceramic


High-end performance and quality,

 it is ideally suited for ultra-high-power laser applications, particularly in beam projectors and specialized lighting.


P C


Phosphor Ceramic




  Heat solution at Ulta-high temperature

       ➕ 60W - 400W Heat dissipation structure

        Above 500W Heat dissipation structure


Optimize solution for optical setup


  Coating solution

       ➕ Refractive index control technology


  Design custom

       ➕ Segment, Ring, Static

 Technical DataH

 Deep green Cx :0.311, Cy : 0.590H dsfc;lsmd;cf

Even more green

Deep Green is a product designed to shift the color coordinates to a shorter wavelength range compared to conventional LuAG-based green phosphors.

The first advantage of this is that by shifting the wavelength range to shorter wavelengths, it enables the use of a broader visible light spectrum. This, in turn, helps deliver better performance at the same power level.

While the Cx coordinate is shifted to a shorter wavelength, the Cy coordinate is maintained, ensuring that the wavelength shift does not compromise the original performance or efficiency of the product.



 Reliability in set condition Static data


Dear Valued customers, Partnering with WOOSUK opens the door to expanding into broader and more dynamic markets.



Phosphor Ceramic


High-end performance and quality,

it is ideally suited for ultra-high-power

laser applications, particularly in

beam projectors and specialized lighting.

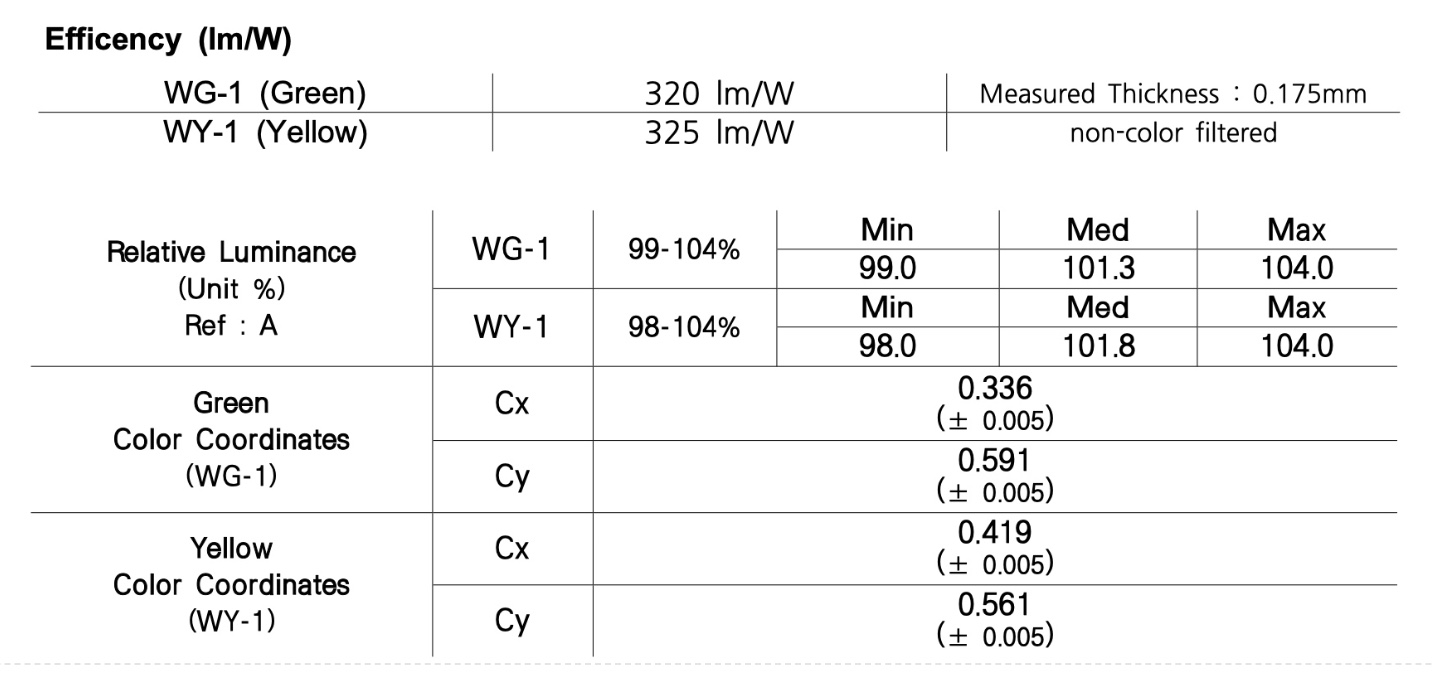

 Technical Data

Reliability in set condition (Static)

 Deep green (Cx : 0.311, Cy : 0.590)

Deep Green is a product designed to shift   the color coordinates to a shorter wavelength range compared to conventional LuAG-based green phosphors.


The first advantage of this is that by shifting the wavelength range to shorter wavelengths, it enables the use of a broader visible light spectrum. This, in turn, helps deliver better performance at the same power level.



While the Cx coordinate is shifted to a shorter wavelength, the Cy coordinate is maintained, ensuring that the wavelength shift does not compromise the original performance or efficiency of the product.
